Instrument module · MB-DMM45

Digital Multimeter

4½-digit digital multimeter with an isolated measurement input. View readings in Control Hub alongside waveforms, protocol traffic and other instruments.

To be announcedPricing

SKU MB-DMM45

Specifications Architecture Configure a lab with this module
Digital Multimeter enclosure reference in a three-quarter bench view, with black housing, blue handles and four red sockets

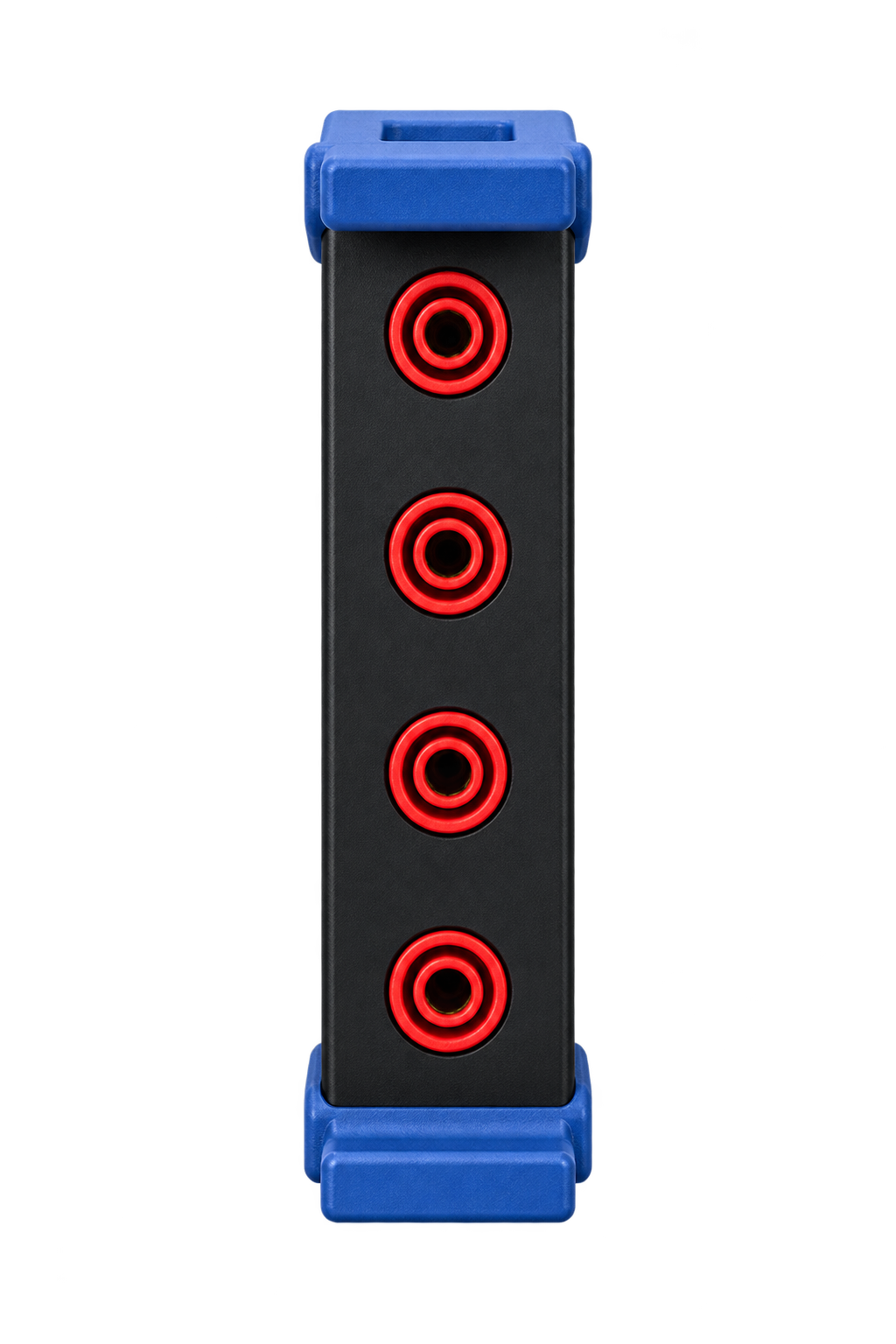

Straight-on front view of the Digital Multimeter, showing four red sockets and blue handles
Digital Multimeter from a front-facing three-quarter studio angle, showing its four red sockets and recessed side panel

1 / 3Bench view

Block diagram

Architecture

The input terminals pass through fused, clamped protection to the 4½-digit ADC on the isolated measurement side. Readings cross the isolation barrier to the MCU, which presents the module over USB-C 3.0 and gigabit Ethernet.

BLOCK-LEVEL · NOT A SCHEMATIC
Digital multimeter block diagram: input terminals, protection, ADC, isolation barrier, MCU, USB-C and Ethernet

Specifications

Specifications and connections for the digital multimeter.

Digital Multimeter specifications.
ParameterSpecificationDetail
Display resolution4½ digits
CAT ratingNot specifiedNo certified rating claimed

Platform interface

Platform specification
Shared module format, control interfaces and rack configuration.
ParameterSpecificationDetail
Module format2UModular Bench format
Rack capacity7 module positionsModular Bench format
User interfaceShared touchscreenModular Bench format
Control interfacesUSB-C / EthernetModular Bench format
Power inputUSB-CModular Bench format
